Product Center

Leading digital image product supplier in China.

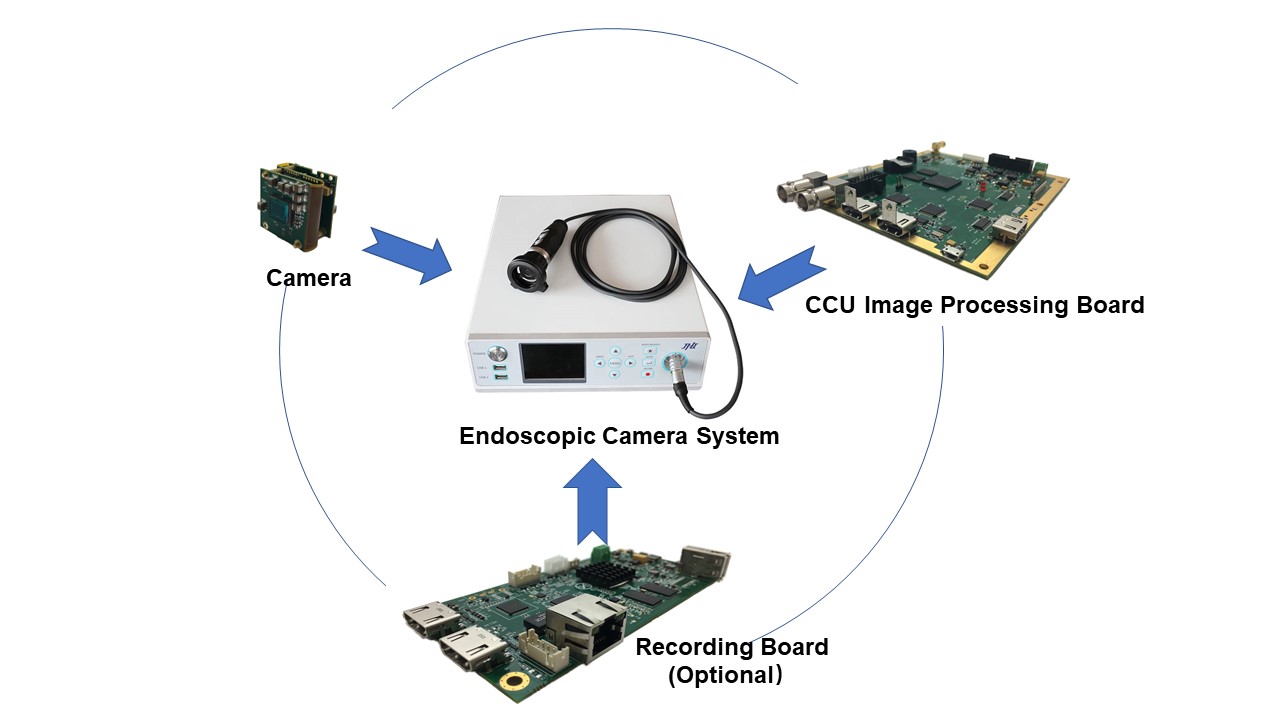

OK_HD380 Full HD 3CCD Endoscopic Camera System

★1920 x 1080 3CCD image sensor.

★Outstanding color reducibility.

★High resolution, high sensitivity.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★Flexible photometry algorithm for complex surgical scene.

Print
Share

  • Product Detail
  • Product Parameters
  • Download



CCU Image Processing Board



Model

OK_HD380

Output

DVI(1080P@60Hz)x2, SDI(1080I@60Hz), CVBS(768x576)

SVIDEO(768x576), RGB(1080I@60Hz)

Image  Processing

Noise  reduction, color rendition, edge enhancement, contrast adjustment, reversion

Light  Source

Multiple  modes for light sources of LED,Xenon Lamp etc.

White  Balance

One  button for automatic white balance

Photometry

2 types  - Average/Peak, optional region

Parameter  Adjustment

Brightness,  R/G/B Saturation, Sharpness, Max. Gain, Gamma, Magnification, Mirror, Color  Modes

Panel  Button

Menu,  White Balance, Freeze, Save etc.

Image  Saving

Resolution:1920  x 1080, Format:BMP;

Quality:Non-destructive,  Memory:SD card

Menu  Language

Chinese,  English

Dimension

Front board:130×105×30(mm)

Back board:200×130×30(mm)

Power

Voltage:15V,-9V,6V,3.3V;Consumption:20W
