Leading digital image product supplier in China.

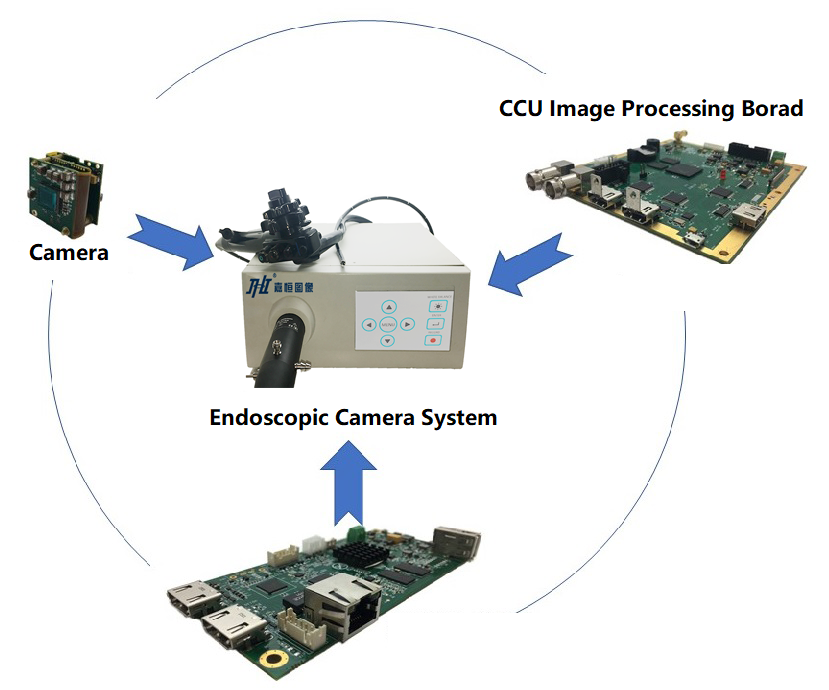

OK_EH206 OH01A/OV9734/OV2740 Endoscopic Camera System

★Acquire original signal of CMOS sensor OV9734/OV2740, really restore image details, rich color levels.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★High reliability, more than 2000V isolation of the sensor and processing board.

★Signal line can be up to 4m.

★PS2 Keyboard to input information.

★Realize recording function with HD130 together.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

內(nèi)窺鏡圖片 en.png

CCU Image Processing Board



Model

OK_EH206

Adaptive Sensor

OV9734（1280×720）, 1/9＂CMOS

OH01A（1280×720）, 1/11＂CMOS

OV2740（1920×1080），1/6＂CMOS

Output

HDMI（1280×1024 P@60Hz）

 DVI（1280×1024 P@60Hz）

S-VIDEO(720×576)

CVBS(720×576)

HDMI（1920×1080 P@60Hz）

 DVI（1920×1080 P@60Hz）

Image Saving

Resolution：1280 x 720,  Format：BMP Quality：Non-destructive, Memory：SD card

Resolution：1920 x 1080,  Format：BMP Quality：Non-destructive, Memory：SD card

White Balance

One button for automatic white balance

Photometry

2 types - Average/Peak, optional region

Parameter Adjustment

Brightness, R/G/B Saturation, Sharpness,   Gamma, Magnification

Panel Button

Menu, White Balance, Freeze, Save etc.

Menu Language

Chinese, English

Dimension

183×127×20（mm）

Power

12V，2A
