Product Center

Leading digital image product supplier in China.

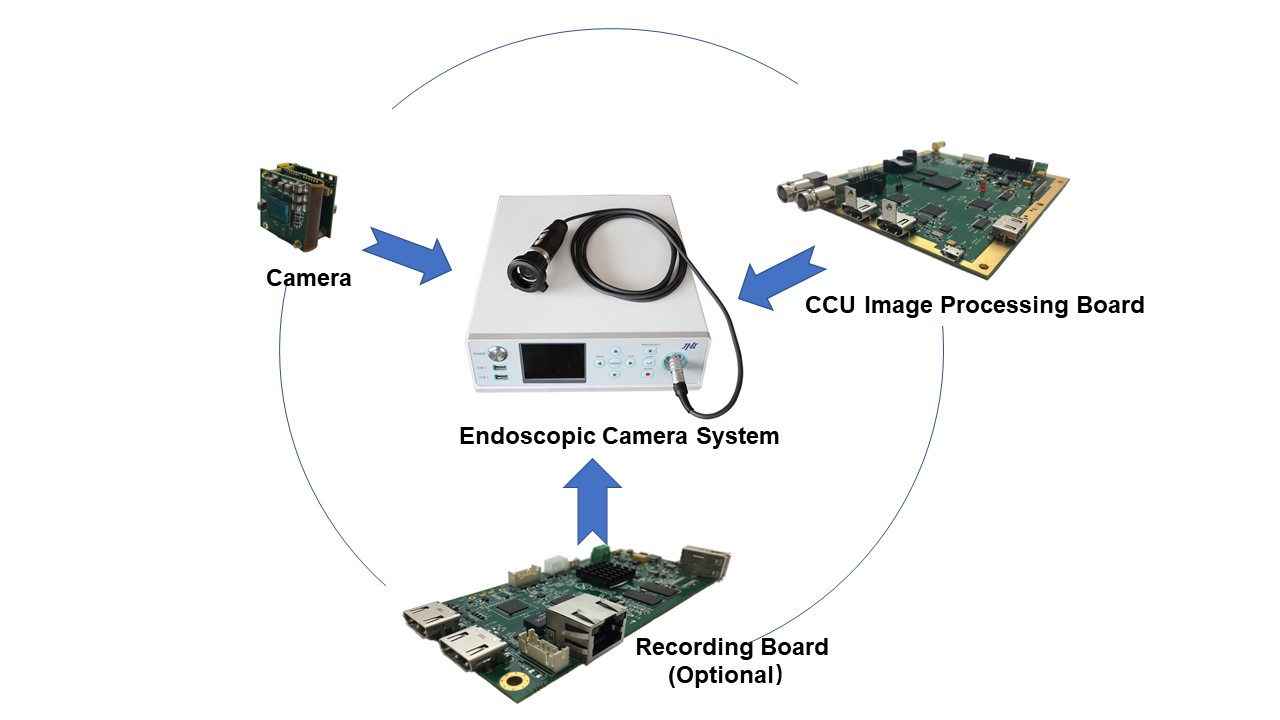

OK_EU401 Super 4K Endoscopic Camera System

★Super HD 4K Resolution:3840 x 2160P@60Hz.

★True color, multiple color modes for light sources.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★L(fēng)ow power consumption for handle, simple connection, digital transmission without interference, good uniformity.

★Flexible photometry algorithm for complex surgical scene.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

Camera


Model

OK_MC401

OK_MC402

OK_MC401-60

OK_MC402-60

Image Sensor

1/1.9CMOS

1/1.8"CMOS

1/1.9CMOS

1/1.8"CMOS

Resolution

3840x2160

3840x2160

Frame Rate

30F/s

60F/s

Button Function

Freeze, white balance etc.

Dimension

33x26x26(mm)



CCU Image Processing Board


Model

OK_EU401

Output

HDMI2.0(3840x 2160P@60Hz), HDMI×2(1080P@60Hz),DVI(1080P@60Hz)

Image  Processing

Noise  reduction, color rendition, edge enhancement, contrast adjustment, image  magnification, dead pixel elimination,

vascular enhancement,eliminate the grid



Light  Source

Multiple  modes for light sources of LED,Xenon Lamp etc.

White  Balance

One  button for automatic white balance

Photometry

2 types  - Average/Peak, optional region

Parameter  Adjustment

Brightness,  R/G/B Saturation, Sharpness, Max. Gain, Gamma, Magnification, Mirror

Panel  Button

Menu,  White Balance, Freeze, Save etc.

Image  Saving

Resolution:3840x 2160, Format:BMP,

Quality:Non-destructive,  Memory:SD card

Menu  Language

Chinese, English

Dimension

168×155×19(mm)

Power

12V,2A
