H0514-MP2 Computar

打印
Share

  • 產品詳情
  • 產品參數
  • 資料下載

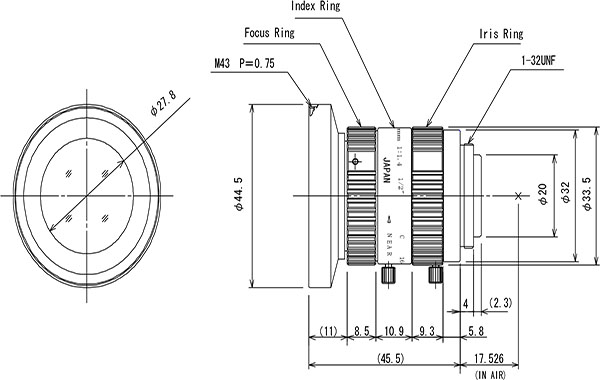

Dimensions


5mm  F1.4

ｆor 1/2 type Megapixel  Cameras

C-Mount

Model No.

H0514-MP

Effective

Front

φ27.8mm

Focal Length

5mm

Lens Aperture

Rear

φ14.8mm

Max. Aperture Ratio

1:1.4

Back Focal Length

10.8mm

Max. Image Format

6.4mm x 4.8mm(φ8mm)

Flange Back Length

17.526mm

Operation Range

Iris

F1.4～16C

Mount

C-Mount

Focus

0.1m～I(xiàn)nf.

Filter Size

M43 P=0.75

Object Dimension at M.O.D

12.9 x 9.6cm

Dimensions

φ44.5mm X 45.5mm


Weight

107 g

Angle of View

D

1/2 type

76.7°

1/3 type

62.3°

1/4 type

48.5°

H

65.5°

51.4°

39.5°

V

51.4°

39.5°

30.0°

Operating Temperature

-20℃ ‐ +50℃


M.O.D : Minimum Object Distance
